Product Details
** Excluding Delivery **

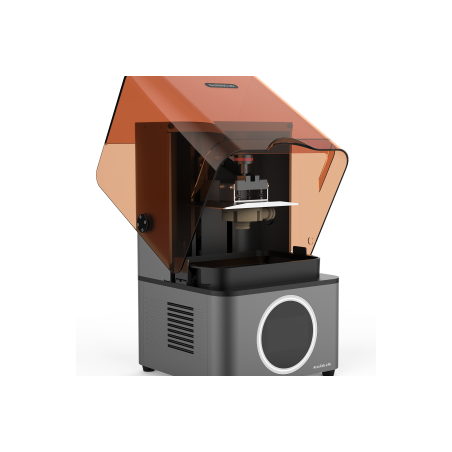

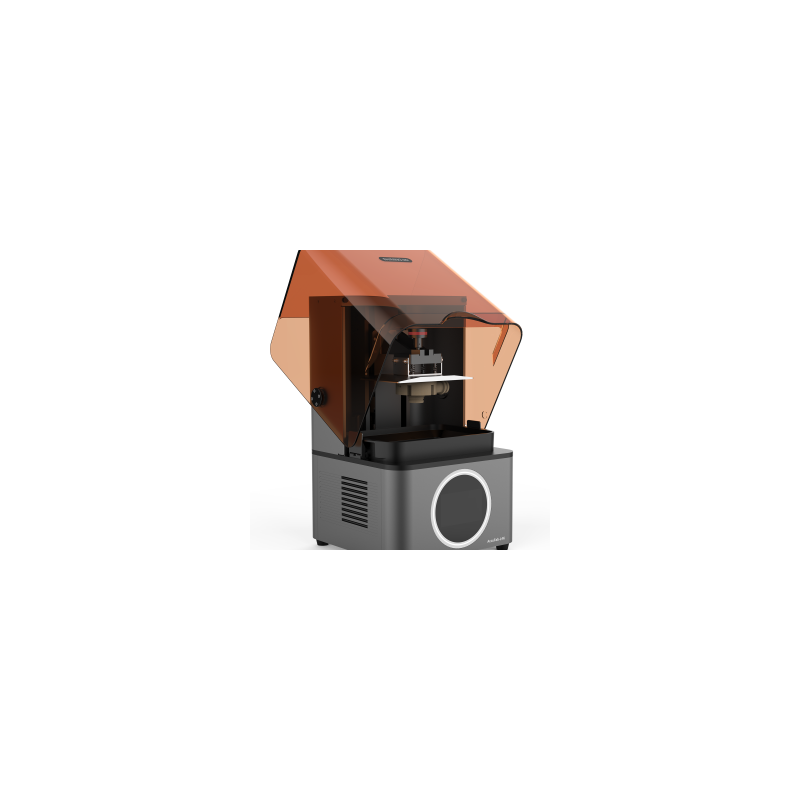

A high-precision resin 3D printer that improves prototyping efficiency and shortens the new product development lifecycle.
Accurate Precise: IT7- level printing accuracy, to ensure the printing size is consistent with the design size.
Outstanding Uniformity: High luminance uniformity achieves up to 90%.
Beyond the Limits: Provides not only the possibility to obtain features, smaller than a pixel, but also superior surface finish.
Technical Information:
Resolution: 3840×2400
Pixel Size: 0.05mm
Wavelength: 405mm
Light Intensity: 3mw/cm^2
Light Source: UV LED + LCD
Print Size: 192mm × 120mm × 180mm
Print Speed: 10 ~ 50mm/h
Tolerance: £0.05mm
Layer Thickenss: 0.025 / 0.05 / 0.075 / 0.1 mm
Working Temperature: 20 ~ 30°C
Working Humidity: 30 ~ 70%
Interface: 5″touch screen
Connection: WiFi/Interenet/Thumdrive
Weight: 19kg
Printer Dimensions: 360mm x 360mm x 530mm
SHINING 3D Engineering Material White Material:
TR01, S1; Yellow Material: DM12; Transparent Material: SG01; Black Material: S2; Washable
Material: W1
– BASF Engineering Material Durable Material:
ST45, ST80; Rigid Material: RG35, RG50; Flexible Material: FL60, EL150
– Third Party Certified Resin Third party resin materials approved by SHINING 3D, also can be used in AccuFab-L4K High-Precision Stereolithography 3D
